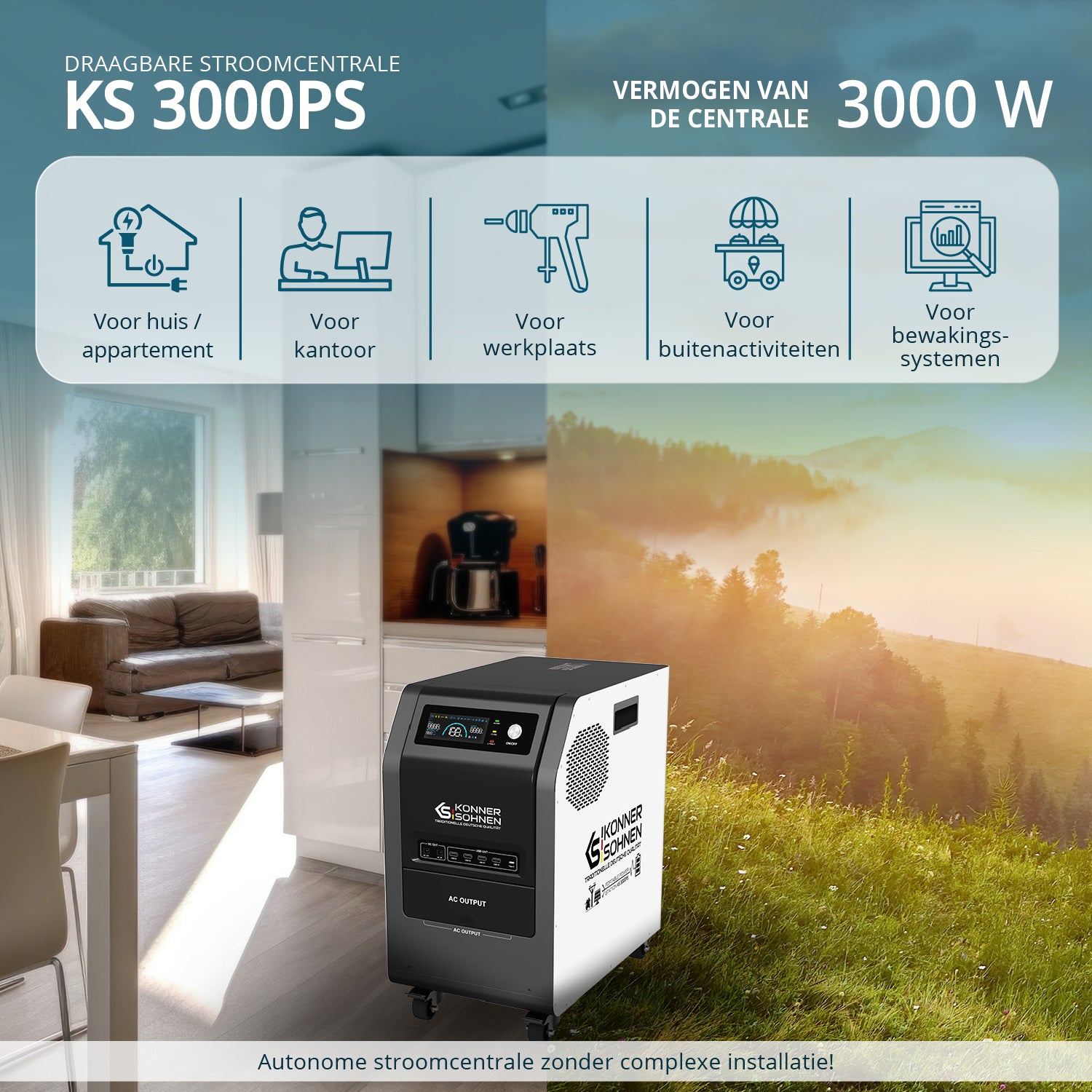

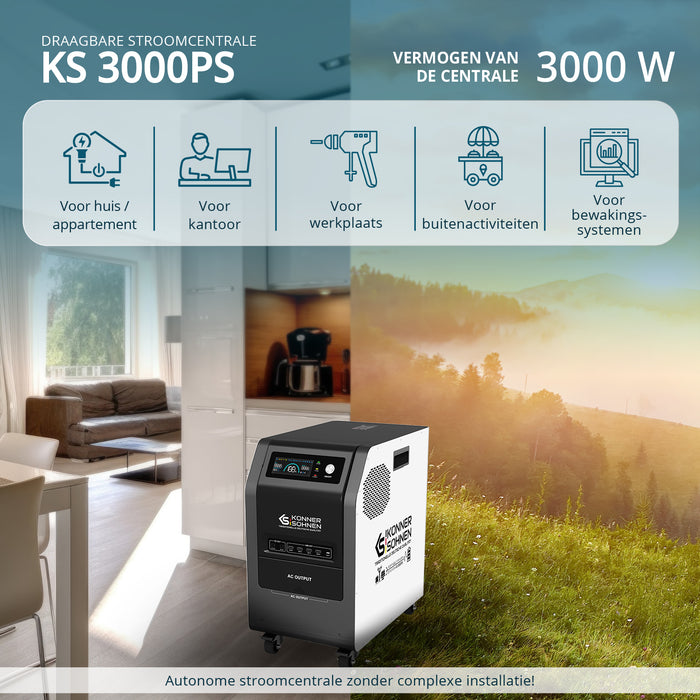

Draagbare stroomvoorziening KS 3000PS

Name: Draagbare stroomvoorziening KS 3000PS
Brand: Könner & Söhnen
SKU: 4260405366880
Price: 1699.0 EUR
Availability: OutOfStock

Niet beschikbaar

€1.699,00

Specificatie

Nominaal vermogen, W:	3000
Capaciteit, Wh:	3200
Batterijtype:	LiFePO₄ (lithium-ijzerfosfaatbatterij)
Levenscyclus:	≤ 6000* cycli
Ononderbroken stroomvoorziening (UPS):	+

Specificatie

Nominaal vermogen, W	3000
AC output waveform	Pure Sinusgolf
Inverter output voltage	230 V ± 5 %
Frequentie, Hz	50 (± 0.2)
Nominale batterijspanning (DC), V	25.6
Conversie-efficiëntie	90%
Batterijcapaciteit	125 Ah/3200 Wh
Batterijtype	LiFePO₄ (lithium-ijzerfosfaatbatterij)
Levenscyclus	≤ 6000* cycli
Ononderbroken stroomvoorziening (UPS)	+
Maximum discharge current, A	125
PV-laadstroom, max, A	60
Huidige uitgang van AC-poorten, A	120
Maximum MPPT conversion efficiency	up to 98%
Maximale rustspanning van zonnepanelen (DC), V	160
MPPT spanningsbereik van zonnepanelen, V	30~128
Nominal AC input voltage, V	230
Ingangsspanningsbereik (AC), V	90-280
Laadstroom (AC), A	16
Overdrachtstijd, ms	10 (UPS); 20 (VDE4105, Home, GEN)

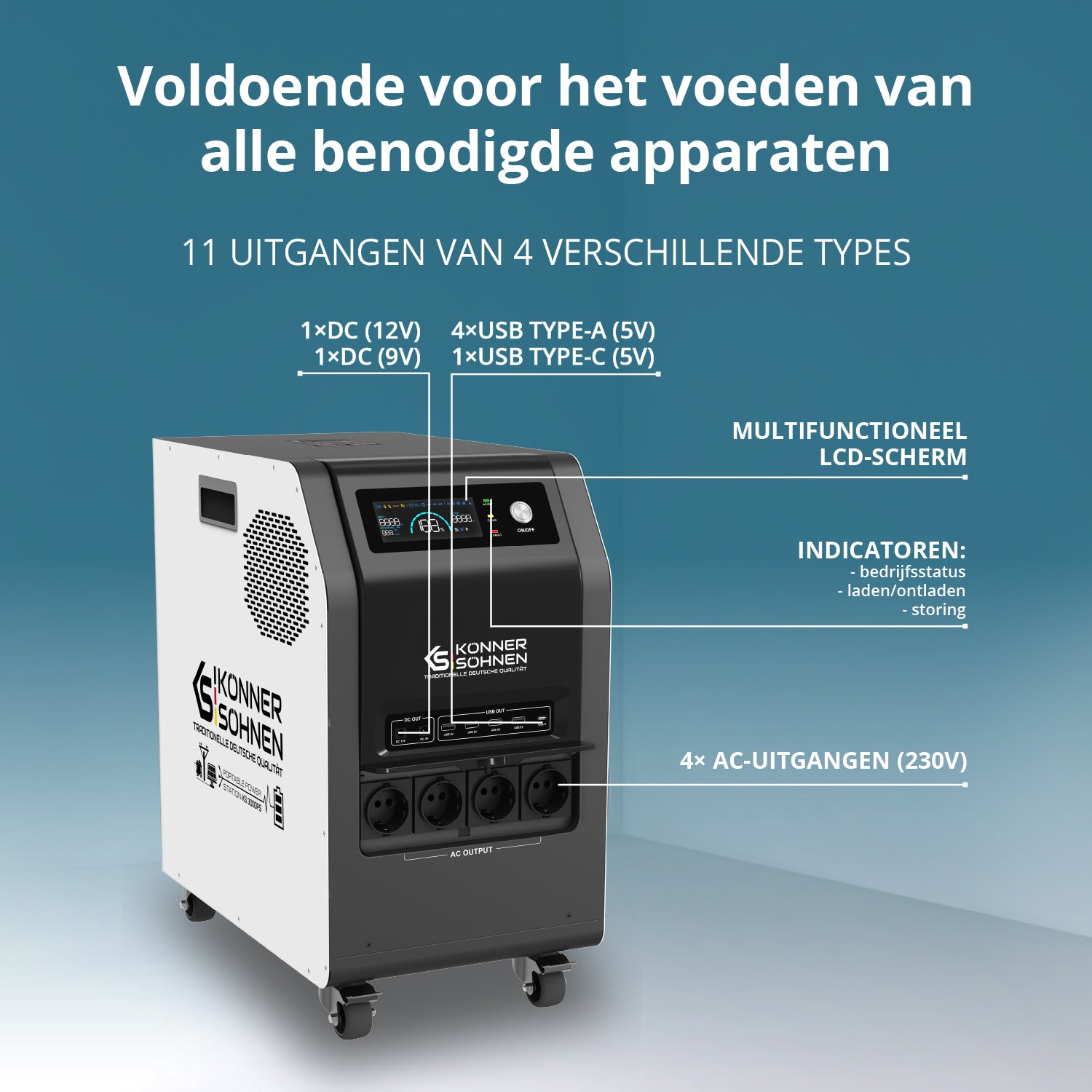

AC-uitgang	4 × Schuko 230 V + rear terminal
DC-uitgang	2 × 12V DC5521
USB-uitgang	4 × Type A (5V/2A)
Type-C-uitgang	1 × Type C (5V/2A)
Bedrijfstemperatuur, °C	0 °C tot 45 °C Opladen, -10 °C tot 60 °C Ontladen
Special features	24V DC output for generator or battery, Pure sine wave inverter, LiFePO₄ 3.2 kWh, MPPT controller, UPS < 10 ms, Tandem Power support, Fast charging up to 80 % in 1 hour, Overload and overheat protection, LCD monitor display, Wheels and handles for mobility
Omvat	Power Station, 230 V Power Cable, USB Cable for PC Connection, 2×Quick Plug Connectors, 2×MC4 Connectors, User Manual

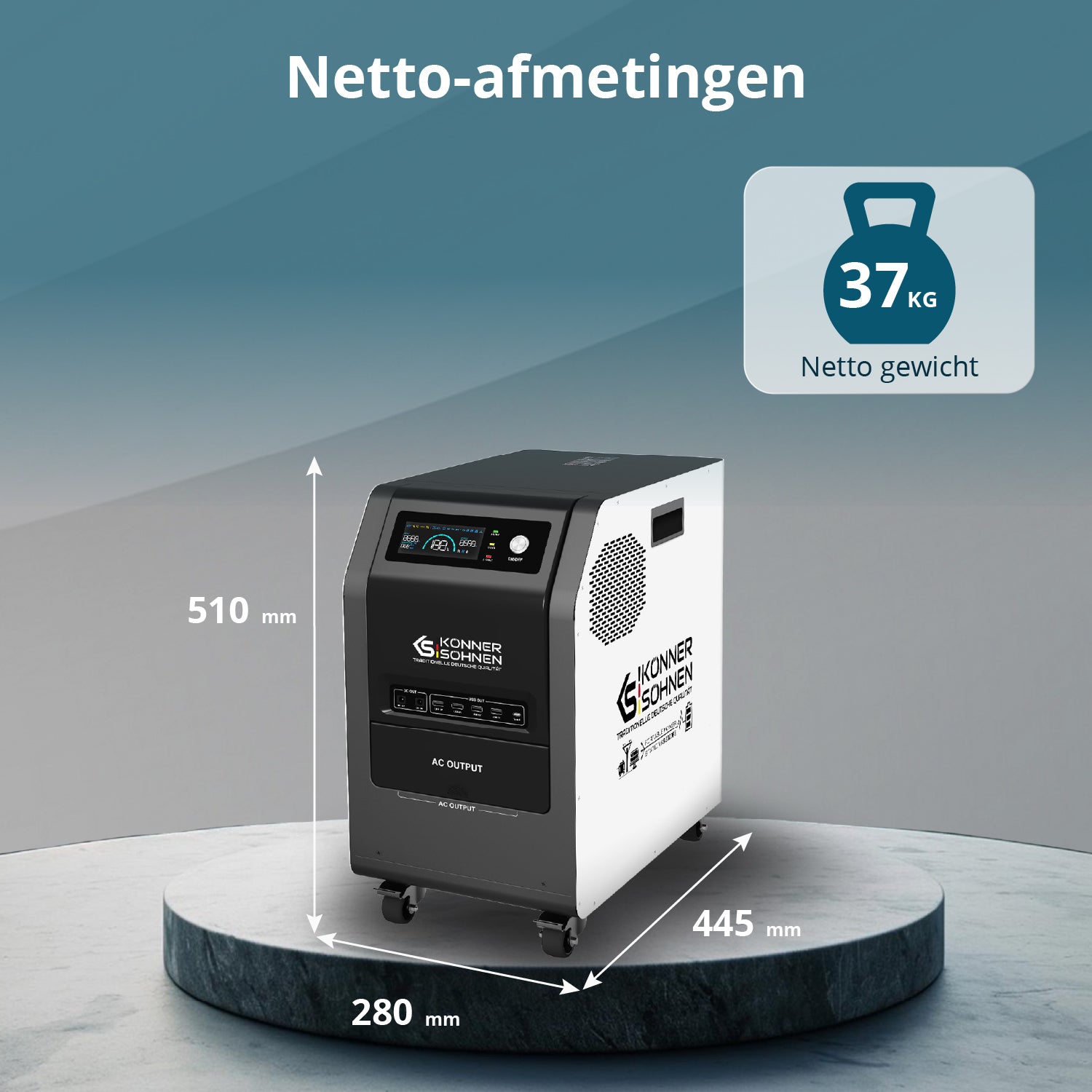

Netto-afmetingen (LxBxH), mm	445×280×510
Bruto afmetingen (LxBxH), mm	555×380×565
Netto gewicht, kg	37
Brutogewicht, kg	43.0
SKU	KS 3000PS
Streepjescode	4260405366880

Voordelen

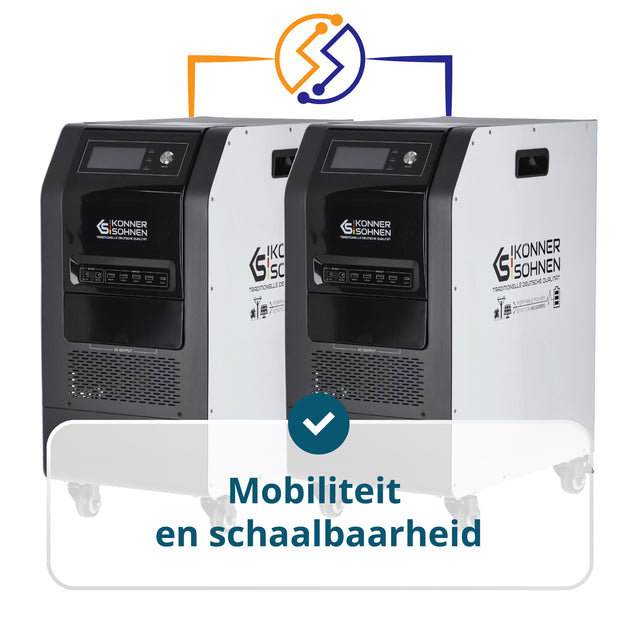

Mobility and scalability – the ability to connect a 24V-DC generator, additional batteries, or combine two identical stations (e.g., 2 × KS 3000PS), along with a portable design, creates a flexible hybrid system for different scenarios — from home to business.

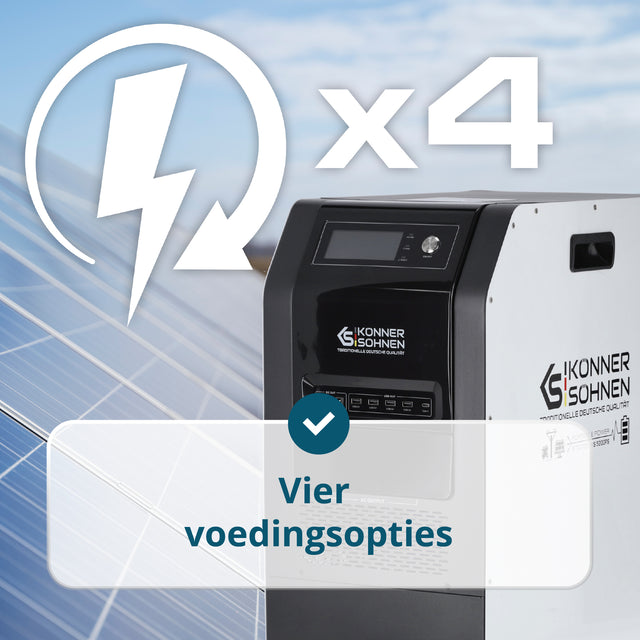

Four power supply methods – power from the grid, efficient solar charging up to 80 % in 1 hour, DC generators or additional batteries, and instant switching between them when necessary.

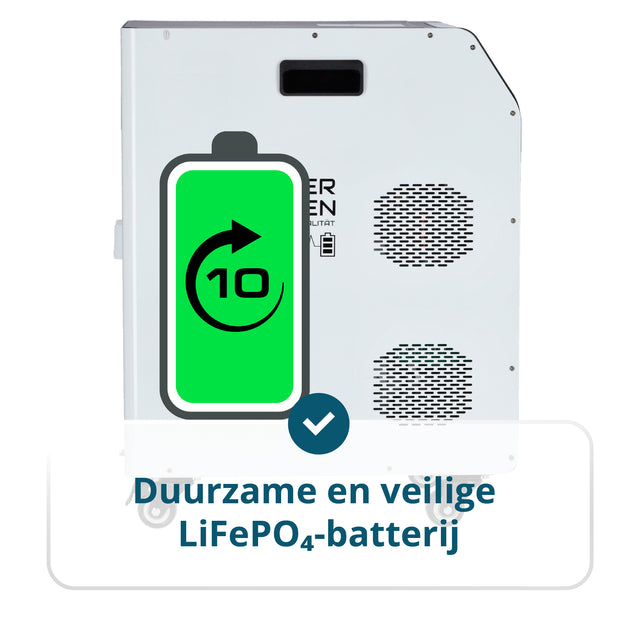

Durable and safe LiFePO₄ battery – lifespan up to 6000 cycles and over 10 years of service ensures a reliable investment in energy independence.
UPS function for uninterrupted operation – automatic power switching in <10 ms protects sensitive equipment from failures, data from loss, and business from downtime.

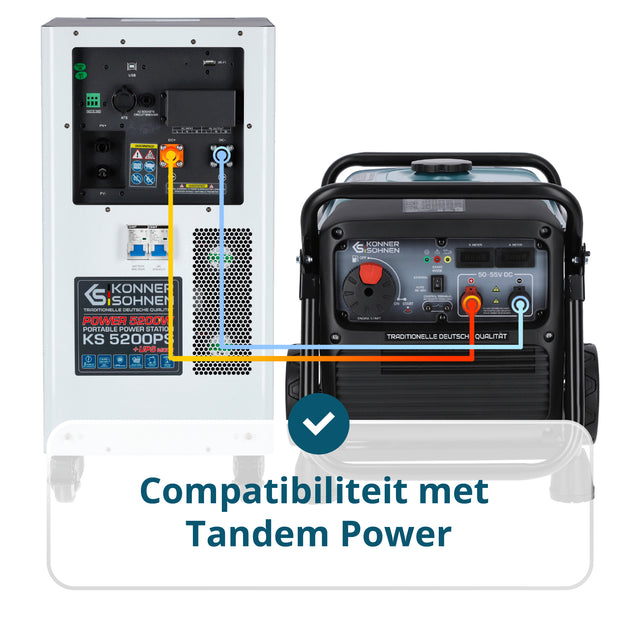

Tandem Power compatibility – smart control when working with the KS 24V-DC generator: when battery level drops, the generator starts automatically, runs with maximum efficiency, and shuts down as soon as the station is charged to 80%.

Bezorging

Gratis verzending: ontvang uw bestelling in slechts 1-5 werkdagen.

Betaling

Wij bieden een breed scala aan veilige en gemakkelijke betaalmethoden, waaronder:

Kenmerken

Könner & Söhnen KS 3000PS is the core of a hybrid energy hub — a multifunctional 3-in-1 power station that combines a pure sine wave inverter, MPPT controller, and 3.2 kWh LiFePO₄ battery. The station allows charging from four sources — grid, solar panels, external battery, or DC generator. Thanks to the 24V DC output, it supports integration with KS 24V-DC generators via the Tandem Power system, which automatically optimizes performance and reduces fuel consumption. Reliable and silent — this station is ready for 24/7 autonomous operation at home, in business, or during power outages.

01 Full energy independence

02 Hybrid DC generator power source

03 External battery operation

04 MPPT solar charge controller

05 ONONDERBROKEN VOEDINGSBRON (UPS)

06 Battery lifespan over 10 years

07 Efficient energy management

08 LCD DISPLAY

09 PC-VERBINDING

Full energy independence

Support for DC generators, additional batteries, and solar panels allows users to obtain free solar energy and operate autonomously for days or even weeks without grid connection in emergencies or prolonged outages.

Liquid error (snippets/custom-features line 48): invalid url input

Hybrid DC generator power source

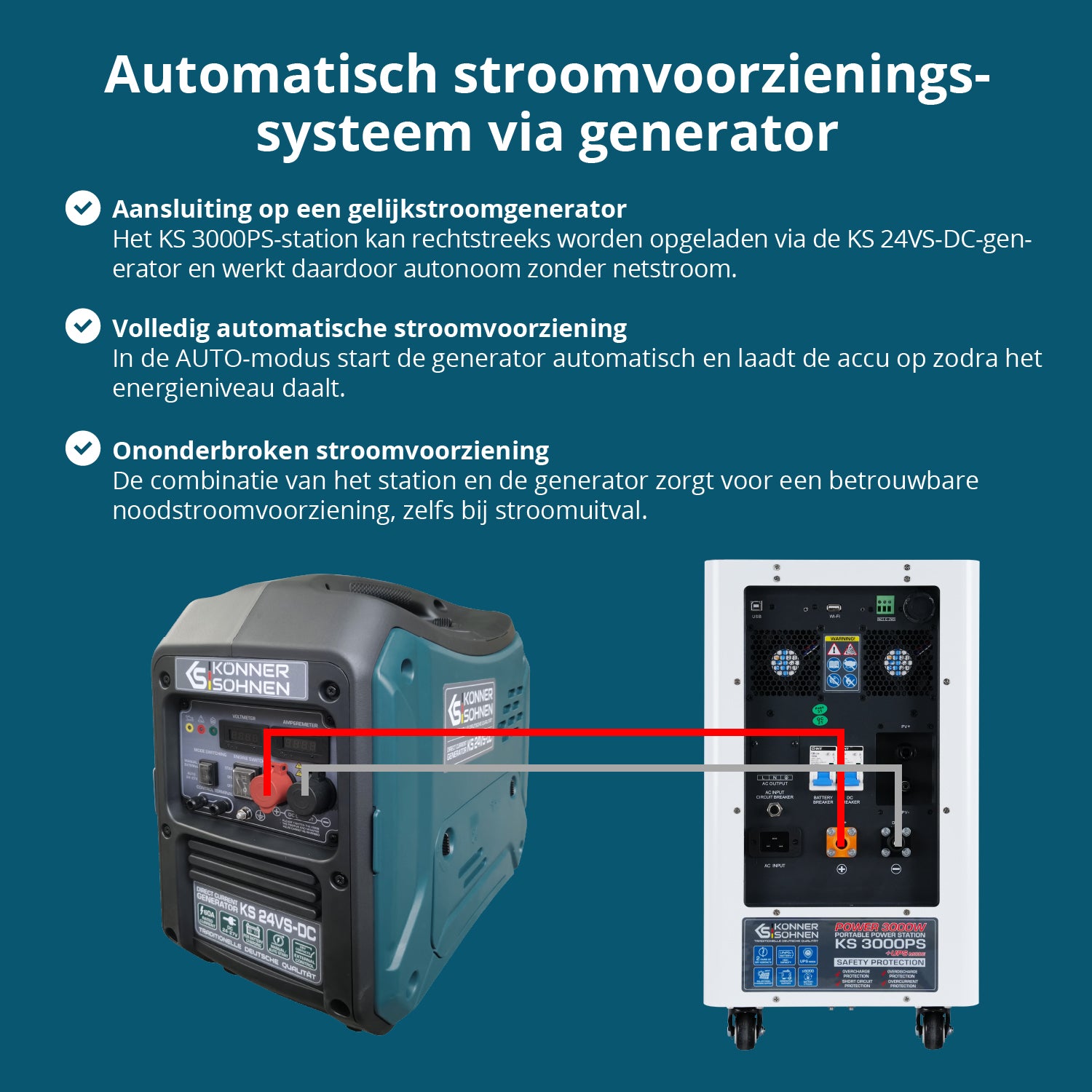

With a KS 24V-DC generator, you can quickly set up a fully automatic power supply. The generator monitors battery voltage, starts charging automatically when needed, and stops when the battery is sufficiently charged.

Liquid error (snippets/custom-features line 48): invalid url input

External battery operation

You can connect an additional battery (LiFePO₄ only, nominal capacity 3.2 kWh) to the DC terminal of the power station, which can either support or replace the built-in battery.

Liquid error (snippets/custom-features line 48): invalid url input

MPPT solar charge controller

The high solar charging capacity is a key advantage of this power station. With sufficient solar panel power, the KS 3000PS charges the battery up to 80 % in just 1 hour.

ONONDERBROKEN VOEDINGSBRON (UPS)

The power station ensures continuous operation of connected devices during power outages or voltage fluctuations. It switches power within milliseconds, protecting against data loss, equipment damage, and downtime.

Battery lifespan over 10 years

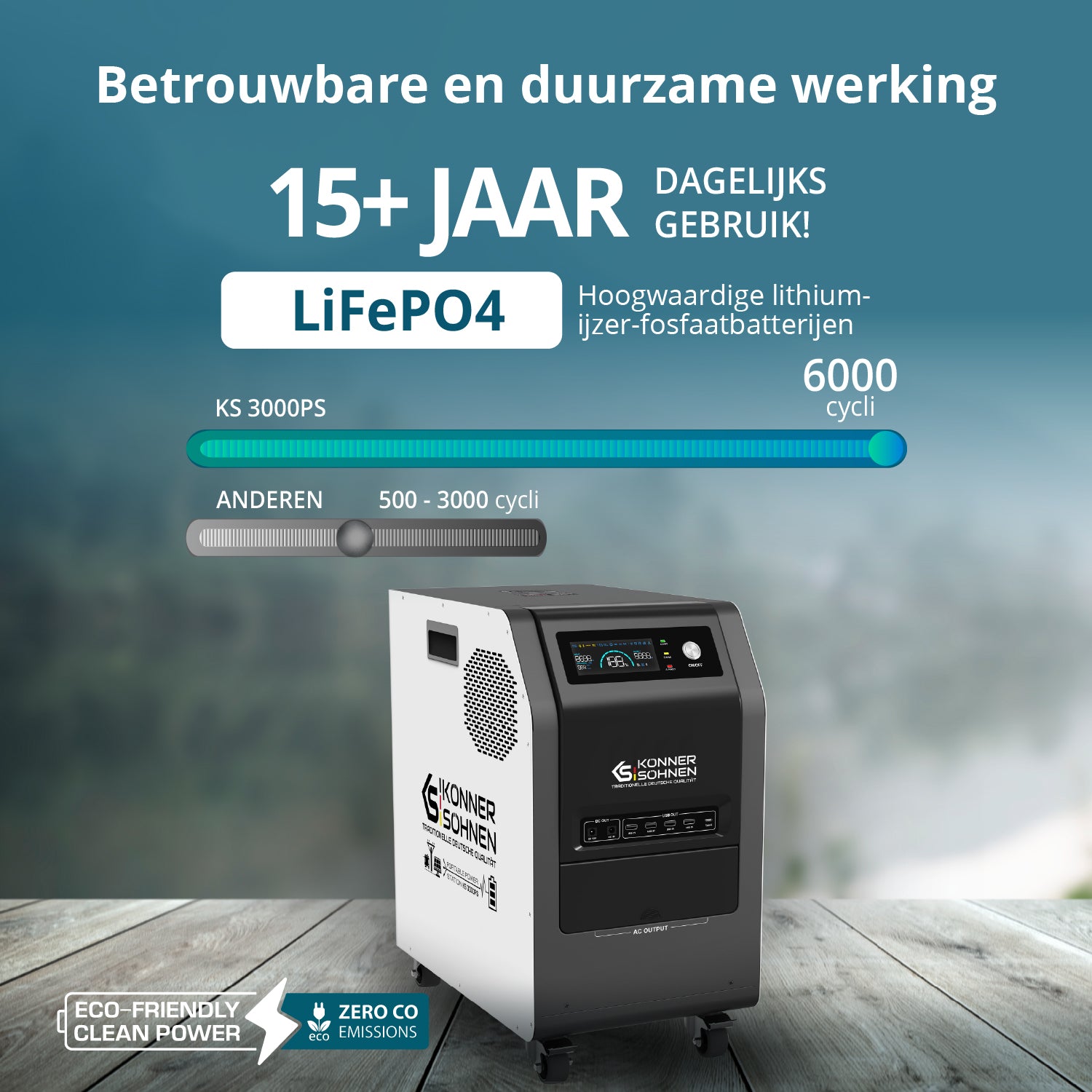

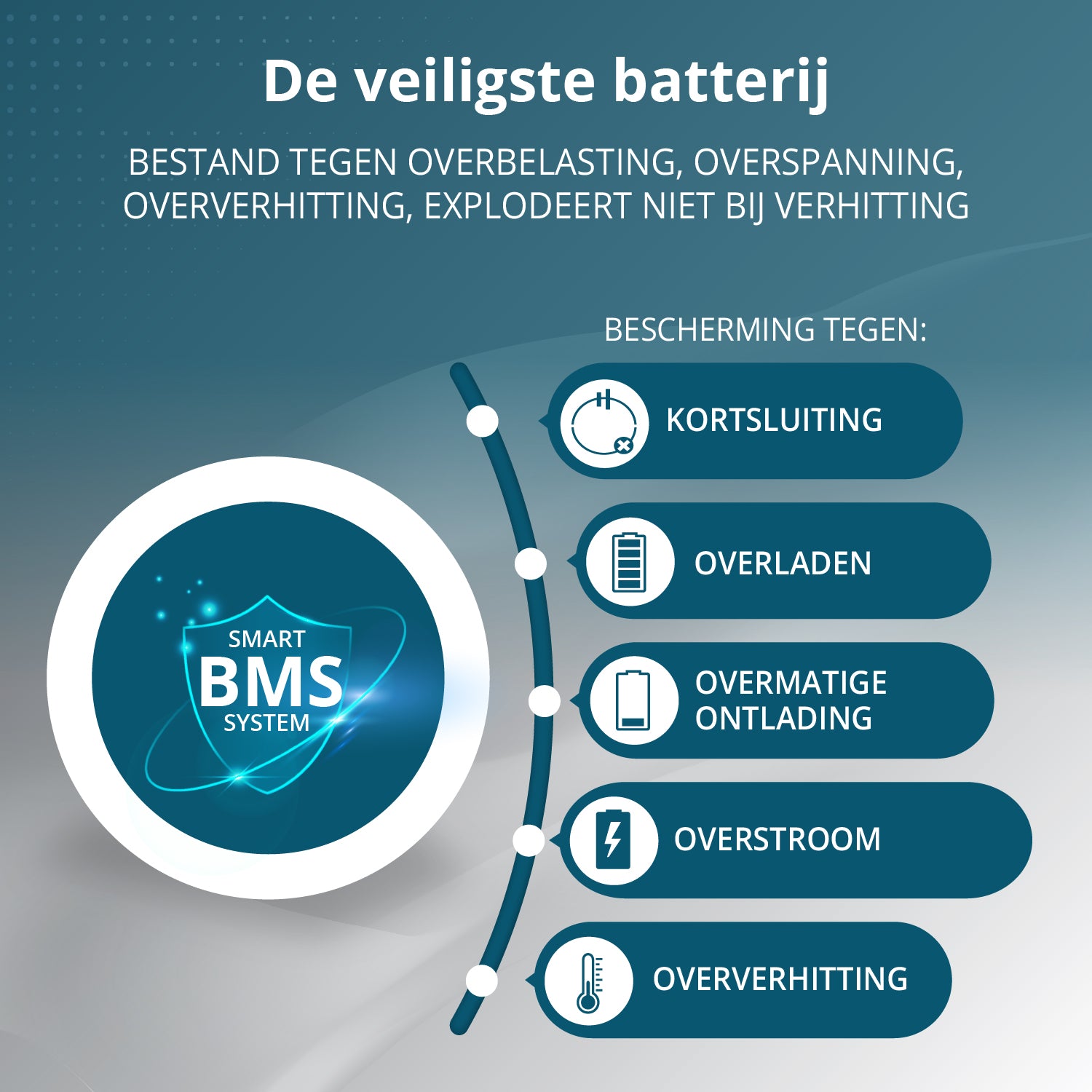

The solar power station is equipped with a lithium iron phosphate (LiFePO₄) battery rated for up to 6000 charge/discharge cycles*, ensuring stable performance for many years.

Efficient energy management

The station includes ATS connectivity, allowing control of an external automatic transfer switch that can redirect excess solar energy to other consumers, maximizing energy efficiency.

LCD DISPLAY

The control panel features an LCD that shows key operating parameters such as battery charge level, remaining runtime at current load, charging time, input and output power, output frequency (50/60 Hz), and warning messages.

PC-VERBINDING

The package includes a USB cable for PC connection via the USB-B port on the rear panel. Installing the software on your computer allows you to monitor key station parameters and adjust settings

Voordelen

Mobilità e scalabilità

la possibilità di collegare un generatore 24V-DC o batterie aggiuntive o combinare due stazioni identiche (ad esempio 2 × KS 3000PS) e il design portatile creano un sistema ibrido flessibile per vari scenari d’uso – dalla casa all’impresa.

Quattro modalità di alimentazione

alimentazione dalla rete, ricarica solare efficiente fino all’80% in 1 ora, da generatori DC o batterie aggiuntive e commutazione istantanea tra di esse quando necessario.

Batteria LiFePO₄ durevole e sicura

fino a 6000 cicli e oltre 10 anni di durata garantiscono un investimento affidabile nell’indipendenza energetica.

Funzione UPS per un funzionamento continuo

la commutazione automatica dell’alimentazione in meno di <10 ms protegge le apparecchiature sensibili da interruzioni, i dati da perdite e le attività da fermi.

Compatibilità con Tandem Power

gestione intelligente durante il funzionamento con il generatore KS 24V-DC: quando il livello di carica della batteria diminuisce, il generatore si avvia automaticamente, lavora con la massima efficienza e si spegne non appena la stazione è completamente ricaricata.

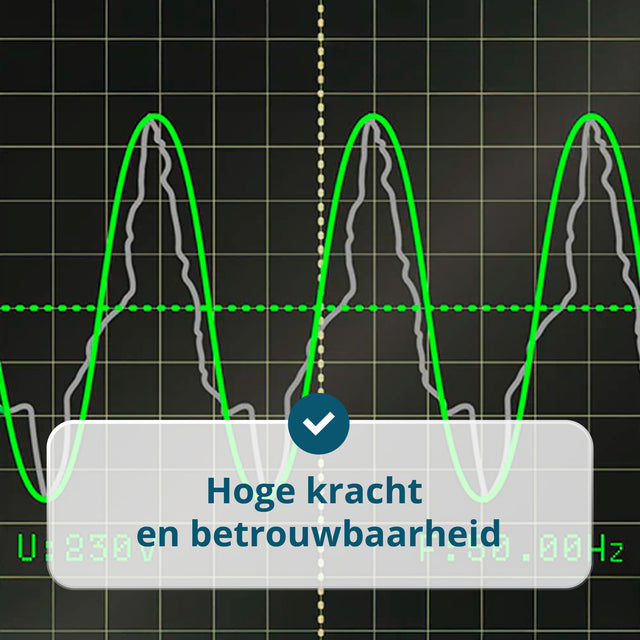

Alta potenza e affidabilità

la stazione con tecnologia inverter e “onda sinusoidale pura” fornisce alimentazione stabile anche ai dispositivi ad alto consumo, sicura per l’elettronica sensibile, garantendo funzionamento in situazioni critiche.

Comfort silenzioso

senza rumore costante del motore, senza gas di scarico, senza gestione manuale.

Specificatie

Draagbare stroomvoorziening KS 3000PS

Nominaal vermogen, W	3000
AC output waveform	Pure Sinusgolf
Inverter output voltage	230 V ± 5 %
Frequentie, Hz	50 (± 0.2)
Nominale batterijspanning (DC), V	25.6
Conversie-efficiëntie	90%
Batterijcapaciteit	125 Ah/3200 Wh
Batterijtype	LiFePO₄ (lithium-ijzerfosfaatbatterij)
Levenscyclus	≤ 6000* cycli
Ononderbroken stroomvoorziening (UPS)	+
Maximum discharge current, A	125
PV-laadstroom, max, A	60
Huidige uitgang van AC-poorten, A	120
Maximum MPPT conversion efficiency	up to 98%
Maximale rustspanning van zonnepanelen (DC), V	160
MPPT spanningsbereik van zonnepanelen, V	30~128
Nominal AC input voltage, V	230
Ingangsspanningsbereik (AC), V	90-280
Laadstroom (AC), A	16
Overdrachtstijd, ms	10 (UPS); 20 (VDE4105, Home, GEN)
AC-uitgang	4 × Schuko 230 V + rear terminal
DC-uitgang	2 × 12V DC5521
USB-uitgang	4 × Type A (5V/2A)
Type-C-uitgang	1 × Type C (5V/2A)
Bedrijfstemperatuur, °C	0 °C tot 45 °C Opladen, -10 °C tot 60 °C Ontladen
Special features	24V DC output for generator or battery, Pure sine wave inverter, LiFePO₄ 3.2 kWh, MPPT controller, UPS < 10 ms, Tandem Power support, Fast charging up to 80 % in 1 hour, Overload and overheat protection, LCD monitor display, Wheels and handles for mobility
Omvat	Power Station, 230 V Power Cable, USB Cable for PC Connection, 2×Quick Plug Connectors, 2×MC4 Connectors, User Manual
Netto-afmetingen (LxBxH), mm	445×280×510
Bruto afmetingen (LxBxH), mm	555×380×565
Netto gewicht, kg	37
Brutogewicht, kg	43.0
SKU	KS 3000PS
Streepjescode	4260405366880
